Custom SMC Mold Solutions for Your Industry Need

Looking for reliable SMC mold manufacturers? We offer custom SMC molds with precision engineering for automotive, electrical, and industrial applications.

Get Best SMC Mold Quotes!

China smc Mold FactorySMC Moulds ( SMC Tooling )

YongChao is the leading plastic injection mould and BMC/SMC mould manufacturer in China,We can make the SMC bumper mould,SMC grille mould,SMC engine cover mould,SMC sink mould,SMC manhole cover mould,SMC house roof mould,SMC bathtub mould,etc.

SMC Mold

SMC Mould Project Information

Product Description	Part Name	cover
	Part Material	SMC
	Part Size(MM)	500300300
Mould Steel	A plate	P20
	B plate	P20
	Cavity Insert	8407
	Core Insert	8407
	Slider Insert	/
	Ejector Plate	S50C
	Spare Parts	S50C
Mould Description	Mould Size (LWH MM)	900600600
	Mould Gross Weight (KG’s)	3000KG
	Mould Life Time (Shots)	300,000
	Mould Manufacturing Cycle	40 days
	Surface Finish	polishing
	Runner Description	/
	Injection Gate Type	/
	Ejection System	Oil cylinder
	Cycle Time (Second)	240s
	Compression moulding machine	500T

Advantages of SMC Mold

SMC molds combine exceptional strength, excellent insulation, lightweight precision, and versatile design capabilities, making them ideal for complex, high-performance applications across various industries.

Strength and Durability

SMC molds produce components with high tensile and flexural strength, ensuring excellent impact resistance and reliable performance under mechanical stress.

Electrical Insulation

With outstanding dielectric properties, SMC molds provide safety and reliability in high-voltage applications, preventing electrical arcing and short circuits.

Lightweight Precision

Components from SMC molds are lightweight yet maintain dimensional accuracy, ideal for handling complex geometries and intricate designs without compromising performance.

Versatile Design

SMC molds support complex shapes, fine details, and varied wall thicknesses while integrating features like inserts and connectors, reducing assembly needs and enhancing functionality.

Applications of SMC Molds

SMC molds are highly versatile, meeting the needs of various industries with their unique combination of strength, insulation, and design flexibility.

Automotive Industry

Household Electrical

Telecommunication

Medical Devices

Aerospace

0102

LET US SUPPLY A QUOTE FOR YOUR NEXT PROJECT.

Yongchao Plastic Mold is a premier provider of top-quality SMC molds. With our extensive experience and expertise, we have earned a reputation as the go-to choice for customers seeking the best SMC molding solutions.

Ask About Our Custom Solutions

Why Choose Us as Your SMC Mold Manufacturer

At Yongchao Plastic Mold, we specialize in creating molds that meet the demands of any size or complexity. Our products are designed to endure the rigorous conditions of the SMC molding process, offering exceptional durability and reliability for various applications.

Our expert team excels in SMC mold design and production, delivering precision-engineered molds that adhere to the highest quality standards. Leveraging cutting-edge technology, we ensure each mold is crafted with superior accuracy and craftsmanship to exceed client expectations.

We are committed to timely delivery and unparalleled customer service. By collaborating closely with our clients, we ensure all molds are delivered on schedule and tailored to exact specifications. Our dedicated team provides comprehensive support throughout the process, making Yongchao Plastic Mold your trusted partner for all your SMC molding needs.

● Many years experience in mold design, with skilled workers ro ensure the quanlity.
● The strength of production capacity, which can supply 200-300 sets per year and delivery on time.
● Good communication skills and good service to customers, schedules are made weekly reports with detailed photos, then send to customers for monitoring.
● Serve the whole process from designing to machining to inspection to mold trials.
● Freely provide easy-damaged spart parts, and other file what you want.

010203

Yongchao Plastic Mold Co., Ltd, professional SMC moldings supplier, mainly devoted in SMC injection molding, SMC moulds,services. With SMC injection molding solution, Yongchao SMC mould has accumulated good reputations from our customers in different countries. SMC injection molding in transportations, sanitary series, electronic appliance, building, and sports and so on. We are equipped with a productive factory at your service which also satisfies your customized requirement.

Ask About Our Custom Solutions

SMC Mold Knowledge & Guides

SMC mold refers to a thermosetting composite material made up of a resin (typically polyester), glass fibers, fillers, and additives, used in compression molding to create complex, strong, and dimensionally stable parts, often seen in automotive components, electrical enclosures, and appliance parts due to its high strength, heat resistance, and electrical insulation properties.

☼ What is SMC ?

SMC is sheet moulding compound.

SMC is a mixture of polymer resin, inert fillers, fiber reinforcement, catalysts, pigments, stabilizers, release agents, and thickeners.

Manufacturing of SMC is a continuous in-line process. The base components of liquids and solids (paste) are bulk mixed and continuously metered onto to the surface of a carrier/barrier film, coating the film surface. Two mirror imaged metering stations operate simultaneously.

One of the paste-coated carrier films are then layered with chopped fibers. The 2 carrier webs, paste & fiber are then brought together in the compaction section, where the sandwich-like layered components are kneaded into one homogenous compound sheet.

The sheet is then fan folded into a container and stored in a controlled environment where maturation takes place, on its way to a specified viscosity.

In recent years, we devoted to research and develop processing SMC moulds of various products, such as auto front& rear bumper, front&rear door panels, electrical appliance, bathtub, container and dishware and so on.

☼ What Is SMC Mold?

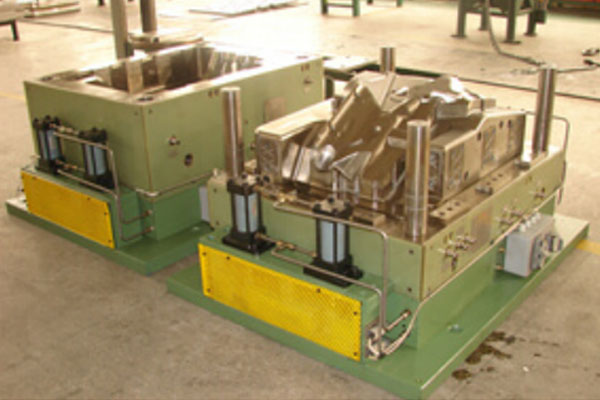

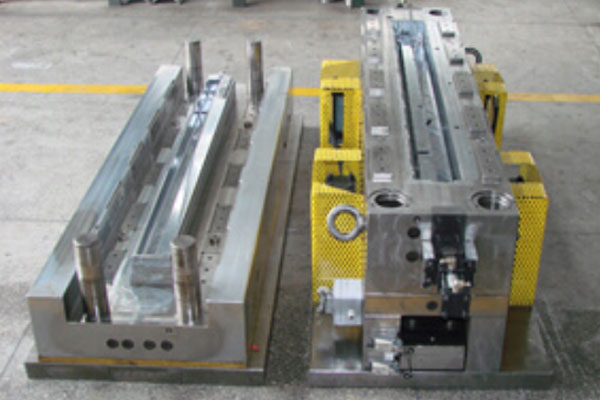

SMC mould is high-strength, high hardness mould made of steel plates with polished surfaces to ensure the surface quality of the SMC moulded parts. The main feature of this mould is that it is made by using a compression process in order to compress the SMC material into the final product.

SMC compression moulding usually use a hydraulic press machine, and the cavity and core are fixed to the top and bottom platens. When the material is placed into the open mould, the platens close, the mould gets heated, and then the press pressure forces the SMC material to flow all over the mould.

☼ Key Points About SMC Molds:

●The color of compounds can be customized.

●In-mould coatings and a vacuum system are available to improve surface paintability, eliminating the need for primer.

●Parting line and the shear edge of mould design; Design of ribs and inserts;Mould surface roughness;Draft angle.

●The working temperature of SMC compression machine is usually 140 degrees to 170 degrees.

●SMC mould requires heated channels. The normal heating system is electricity .

☼ The Advantage of Smc Molding Parts Is as Follows:

●Good dimensional stability, including excellent thermal resistance.

●Pigmentable for molded-in color; best appearance with mold texture.

●Excellent property retention in cold and hot environments.

●Suitable for outdoor use in applications involving UV exposure and water.

☼ Key Considerations for SMC Mold Design and Optimization

SMC mould design follows similar rules as for any other production process with the plastic industry. But before you build a SMC mould, there are certain things need to be considered.The first and most important is shear edge.

Mould shrinkage

There are two shrinkage for SMC mould. Low profile class A part have a shrinkage of -0.05% to 0%.

Temperature system

SMC need heating channel instead of cooling. The working temperature of the mould is usually at 140 degree to 160 degree. When designing the temperature systme it is important to keep surface temperature within very close parameters. Mould will fill easier and produce parts with less warpage, and uniform surface appearance. The The mould can be heated by steam, or oil, or electricity or even high pressure water.

Vacuum System

To achieve a better appearance of part will require vacuum assistance. For more information please contact our techinician

☼ Types of SMC Molds

SMC (Sheet Molding Compound) molds come in various types, each designed to meet the specific needs of different industries and applications. Here are the main types of SMC molds:

Compression Molds

Compression molds are the most common type used in SMC molding. They are used to create parts by applying heat and pressure to the SMC material. The material is placed into a heated mold cavity, and pressure is applied to ensure the material flows and takes the shape of the mold.

Applications:Automotive parts, electrical components, industrial equipment.

Transfer Molds

Transfer molds use a similar method to compression molding but are designed to transfer the SMC material from a chamber into the mold cavity. The material is heated in a separate chamber before being transferred under pressure into the mold.

Applications:Complex or intricate parts with fine details.

Injection Molds

Injection molding involves injecting SMC material into a mold cavity under high pressure. This type of mold is used for producing smaller, precise components and is typically used when high-volume production is required.

Applications:Electronic devices, consumer goods, and small mechanical components.

Multi-Cavity Molds

Multi-cavity molds are designed with multiple cavities in a single mold tool, allowing for the simultaneous production of several parts in one cycle. This significantly improves production efficiency.

Applications:High-volume manufacturing of automotive, electrical, and household parts.

Insert Molds

Insert molds are designed to incorporate metal or other material inserts into the SMC mold. The inserts are placed in the mold before the SMC material is injected or compressed, allowing for the creation of parts with integrated features like threads or connectors.

Applications:Parts requiring integrated metal inserts, such as automotive components or electrical connectors.

Long Fiber-Reinforced Molds

These molds are specifically designed to accommodate SMC materials that are reinforced with long fibers, providing enhanced strength and durability. The long fiber-reinforced SMC material is ideal for parts that need to withstand high mechanical stress.

Applications:Structural components, automotive frames, and heavy-duty parts.

Vacuum-Assisted Molds

In vacuum-assisted molding, a vacuum is used to remove air from the mold cavity, which helps reduce defects and improve material flow. This process is often used for parts that require high surface quality and precision.

Applications:Automotive and aerospace components, electrical insulators.
