PPS Injection Molding Manufacturer in China | High-Performance Plastic Solutions
ISO 9001:2015 Certified | UL-Recognized Flame Retardant Grades | Automotive & Medical Compliance
As a leading PPS injection molding manufacturer in China, we engineer custom molded PPS components for extreme environments. With 20+ years specializing in polyphenylene sulfide applications, we deliver mission-critical parts for automotive connectors, surgical tools, and aerospace systems – combining material science expertise with vertically integrated production.
Click for inquiry

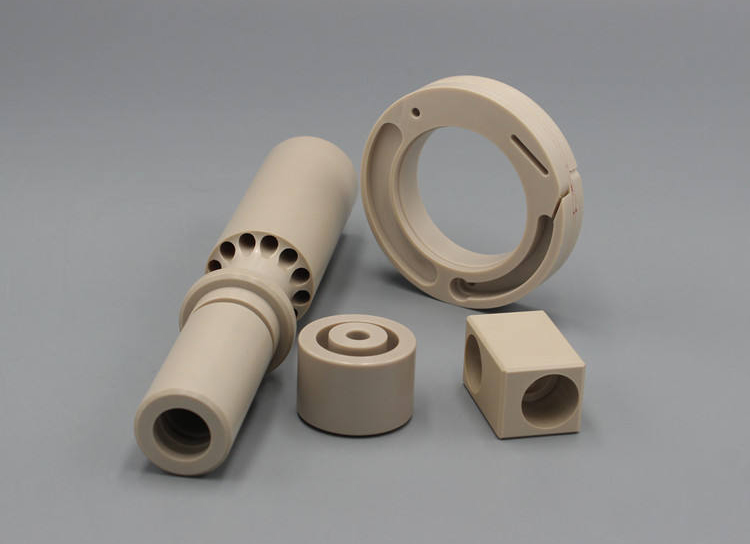

Material made in PPS+40%GF RYTON R4-200
What is PPS Injection Molding
Polyphenylene sulfide (PPS) is a high-temperature, semi-crystalline polymer renowned for:
● Flame retardant properties (UL94 V-0 without additives)
● Chemical resistance against fuels/solvents
● Exceptional dimensional stability (±0.1% shrinkage)
● Continuous service at 220°C (428°F)
PPS injection molding transforms these molding compounds into precision components like fuel system valves and electrical insulators. Unlike conventional plastics, PPS requires specialized processing to unlock its full potential.
If we can be of assistance with your PPS injection molding project call us at +86 177 2234 8956 or use our Contact Form.
Let's talk

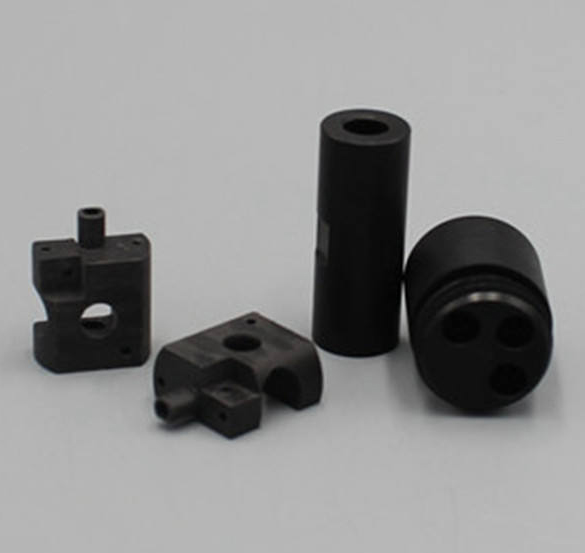

Made in material PPS+40%GF A504X90 BK
Industries & Applications
Automotive
● Ignition coils, sensor housings
● Leveraging PPS' 240°C continuous heat resistance
Electronics
● SMT carriers, relay bases
● Utilizing UL94 V-0 flame retardant properties
Industrial
● Chemical pump impellers, bearing cages
● Exploiting unbeatable chemical resistance
Medical
● Sterilizable surgical instruments
● Benefiting from USP Class VI compliance
Quality Assurance & Standards
Rigorous Validation Protocols
● Dimensional checks: CMM (±5μm accuracy)
● Certifications: ISO 9001, ISO14001
Batch Consistency Controls
● Real-time SPC monitoring of injection molding parameters
● Lot-traceable material certifications (Solvay Ryton®, Celanese Fortron®)
Technical Insights: Mastering PPS Processing
Material Selection Strategy
Procurement Tip: Specify operating environment – we’ll recommend optimized compounds.
| Grade | Best For | Key Property |
| Unfilled PPS | Chemical seals | Purity, FDA compliance |
| 40% Glass-Filled | Structural brackets | 25,000 MPa flexural modulus |
| Conductive PPS | EMI/RFI shielding | 10² Ω-cm surface resistivity |
Warpage Prevention Techniques
Mold Design: Uniform wall thickness + 1.5° draft
Post-Processing: Annealing to relieve internal stresses
Certification & Compliance
Automotive: PPAP documentation support
Cost Optimization Roadmap
● Tooling: Family molds for small components
● Material: 15% regrind incorporation
● Automation: Robotics for insert molding
PPS Mold Design & Process Parameters
Tooling Critical Considerations
● Steel Selection: Hardened H13 (HRC 48-52) for corrosion resistance
● Venting: 0.02-0.04mm gaps to prevent gas traps
● Hot Runner Systems: Maintain 310-330°C melt temperature
Optimal Processing Window
Pro Tip: Post-mold annealing (204°C for 2hrs) enhances crystallinity for maximum heat resistance.
| Parameter | Range | Deviation Impact |
| Barrel Temperature | 300-360°C | <300°C: Incomplete fusion |
| Mold Temperature | 130-150°C | <120°C: Premature cooling |
| Injection Pressure | 800-1,200 bar | Low: Sink marks |
| Drying | 4hrs @ 150°C | Moisture >0.05%: Splay |
FAQs: PPS Injection Molding
Q: Can PPS replace metal in high-heat applications?
A: Yes – our glass-filled PPS parts withstand 240°C while cutting weight by 60% (e.g., transmission thrust washers).
Q: How thin can PPS walls be molded?
A: 0.25mm with high-flow compounds like Ticona Fortron® 6165A6 (verified for microfluidic chips).
Q: Do you provide flame-retardant certifications?
A: Yes – UL 94 V-0 (0.8mm thickness) with glow-wire 960°C compliance.
Q: What’s your mold lifespan for PPS?
A: 500,000+ shots with hardened steel and specialized coatings.
