Solve the challenges of Plastic Injection Mold Design

Hello, everyone! I'm excited to share my journey and insights into the fascinating world of plastic injection mold design. As a mold designer, I've encountered a variety of challenges over the years, each requiring careful consideration and problem-solving. Here are some of the most common challenges I face in mold design, along with how I approach them:

1. Ensuring Proper Material Flow

Challenge: One of the biggest challenges is ensuring that the molten plastic flows smoothly and evenly into the mold cavity. Issues like short shots (incomplete filling) or flow lines can occur if the flow is not optimized.

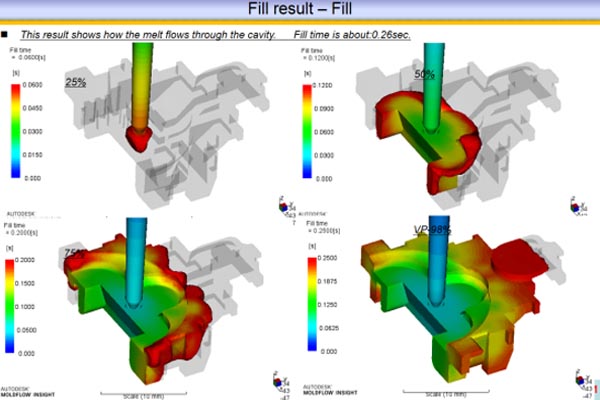

Solution: I use advanced simulation software to model the flow of plastic within the mold. This helps me identify potential problem areas, such as narrow sections or sharp corners, where the flow might be restricted. By adjusting the gate size, runner design, and venting, I can optimize the flow and ensure a consistent fill.

2. Balancing Cooling Efficiency

Challenge: Cooling is critical for reducing cycle times and preventing defects like warping or sink marks. However, designing an efficient cooling system while maintaining the structural integrity of the mold can be tricky.

Solution: I design conformal cooling channels that closely follow the shape of the mold cavity. This ensures uniform cooling and reduces the risk of defects. Additionally, I use thermal analysis tools to simulate the cooling process and make adjustments as needed to achieve optimal cooling efficiency.

3. Minimizing Ejection Issues

Challenge: Parts can sometimes stick to the mold or get damaged during ejection. This can lead to production delays and increased scrap rates.

Solution: I carefully design the ejection system, ensuring that the ejector pins are strategically placed and sized to provide even force across the part. I also incorporate draft angles into the mold design to facilitate smooth part release. Regular maintenance and lubrication of the ejection system are essential to prevent issues over time.

4. Managing Mold Complexity

Challenge: Complex part geometries often require intricate mold designs, which can be difficult to manufacture and maintain. Overly complex molds can also lead to higher costs and longer lead times.

Solution: I work closely with the engineering team to simplify the mold design where possible without compromising the part's functionality. Using advanced CAD/CAM software, I can create detailed 3D models and perform virtual prototyping to identify potential issues early in the design phase. This helps me strike a balance between complexity and manufacturability.

5. Ensuring Mold Durability

Challenge: Injection Molds are subjected to high pressures and temperatures, which can lead to wear and tear over time. Ensuring the mold's durability while keeping costs under control is a constant challenge.

Solution: I select high-quality mold materials, such as hardened steel, for critical components. I also incorporate wear-resistant coatings and design the mold with adequate wall thickness to withstand repeated use. Regular inspections and maintenance are crucial to identifying and addressing potential wear issues before they become critical.

6. Optimizing for Cost-Effectiveness

Challenge: While it's important to design molds that are precise and durable, it's equally important to keep costs in check. High-quality molds can be expensive, and finding the right balance between cost and performance is a common challenge.

Solution: I focus on optimizing the mold design to reduce material usage and simplify the manufacturing process. For example, using standard components and modular designs can help lower costs. I also work closely with suppliers to source materials and components at competitive prices without compromising quality.

7. Meeting Tight Tolerances

Challenge: Many applications require extremely tight tolerances, which can be difficult to achieve and maintain throughout the production process.

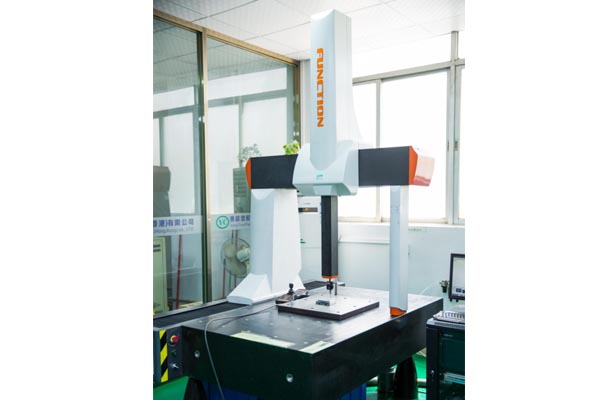

Solution: I use high-precision machining equipment and advanced measurement tools to ensure that the mold components are manufactured to exact specifications. Regular quality control checks and adjustments during the production process help maintain these tight tolerances.

8. Addressing Warpage and Shrinkage

Challenge: Plastic materials can shrink and warp as they cool, leading to dimensional inaccuracies and cosmetic defects.

Solution: I carefully select materials with low shrinkage rates and design the mold to accommodate the expected shrinkage. Using simulation tools to predict warpage and making adjustments to the mold design, such as adding ribs or modifying wall thickness, helps minimize these issues.

Conclusion

Mold design is a complex and multifaceted process, and these challenges are just a few of the many that I encounter regularly. By leveraging advanced technology, collaborating closely with the team, and continuously refining my approach, I strive to create molds that are efficient, durable, and cost-effective. Each project presents its unique set of challenges, but with experience and a problem-solving mindset, I can overcome them and deliver high-quality molds that meet the needs of our customers.
