HDPE Injection Molding Processing Guide:From Resin to Finished Part

HDPE’s blend of chemical resistance and impact resistance makes it ideal for fuel tanks, medical trays, and food containers. However, achieving high-quality molded parts requires precise control of three key phases. Here’s a no-nonsense guide based on 15 years of field experience.

Phase 1: Material Preparation

1. Resin Selection

● Food/Grade Medical: Specify FDA-compliant grades (e.g., ExxonMobil HD7705)

● Industrial: Use UV-stabilized resins (e.g., Chevron HDPE 5502) for outdoor applications

2. Drying Protocol

● Temperature: 65-80°C (149-176°F)

● Time: 2-3 hours (critical—undried HDPE causes bubbles and weak weld lines)

● Moisture Target: <0.02%

Pro Tip: Store opened resin bags in sealed containers with desiccant.

Phase 2: Machine Settings

(Low temp + slow speed = flow marks; High temp + fast pressure = smooth surfaces)

Phase 3: Mold Design Essentials

1. Wall Thickness

● Minimum: 1.5mm (0.059")

● Ideal: 2.5-3.5mm (0.098-0.138")

● 6mm? Use gas-assist molding to prevent sink

2. Shrinkage Compensation

Standard: 1.5-4% (varies by grade)

3. Gate Design

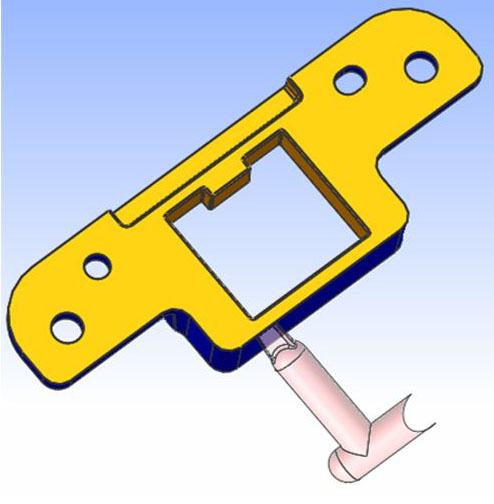

● Direct gates for thick parts (>4mm)

Troubleshooting: 3 Most Critical Issues

Problem 1: Warping

● Root Cause：Uneven cooling rates

● Fix：

Increase mold temp to 50°C+

Add conformal cooling channels (5-15% cycle time reduction)

Problem 2: Brittle Weld Lines

● Why：Material cools too fast at merge points

● Solutions：

Raise melt temp by 10-15°C

Relocate gates to minimize flow fronts meeting

Problem 3: Sticking in Mold

● Checklist：

Polish mold to SPI-A3 finish (Ra ≤0.2μm)

Apply mold release (e.g., PTFE spray) every 500 cycles

Verify draft angles: 1° minimum (2° for textured surfaces)

Key Takeaway：

HDPE’s versatility is unlocked through disciplined processing. Control three pillars—material dryness, precise temperatures, and shrinkage-aware mold design—to avoid 80% of production issues. For complex projects, partner with tooling experts who understand how HDPE’s crystallinity affects final part performance.
