BMC Injection Molding | Yongchao Mold
BMC Molding Material
BMC material is a bulk molding compound composed of glass fiber and unsaturated resin.
It features insulation, high-temperature resistance, fireproofing, UV resistance, high impact strength, and tensile strength.
It maintains excellent performance in both cold and hot environments, making it suitable for outdoor applications with UV resistance and waterproofing functions.
With stable dimensions and minimal shrinkage, it can be used in products with complex structures.
It is widely applied in industries such as home appliances, industrial electrical equipment, aerospace, new energy, automotive, and construction.

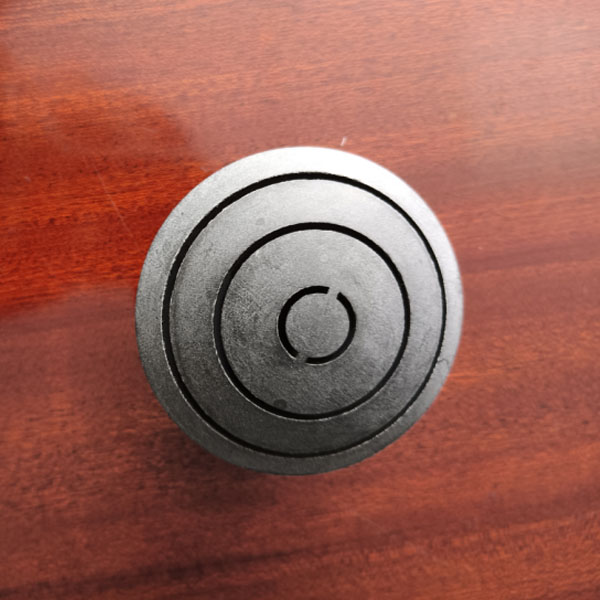

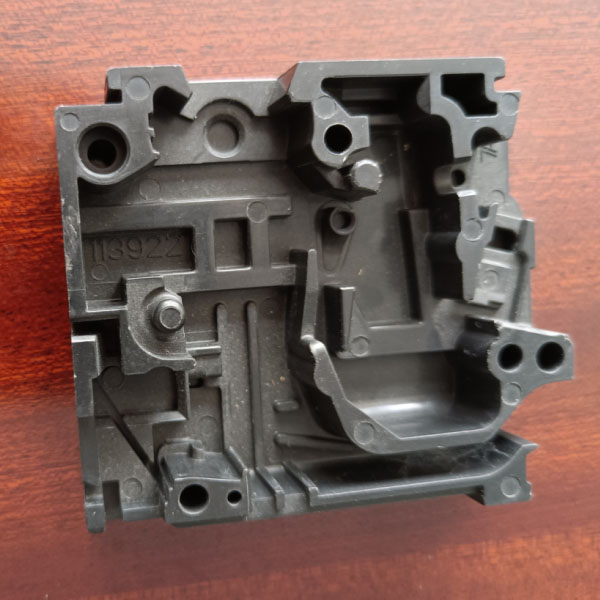

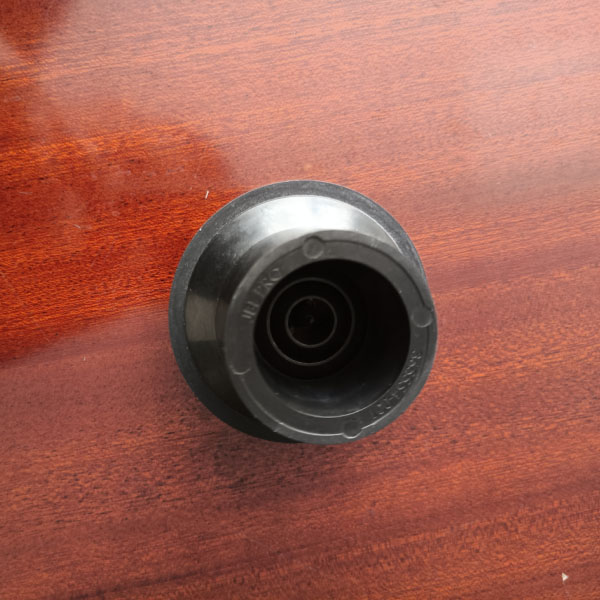

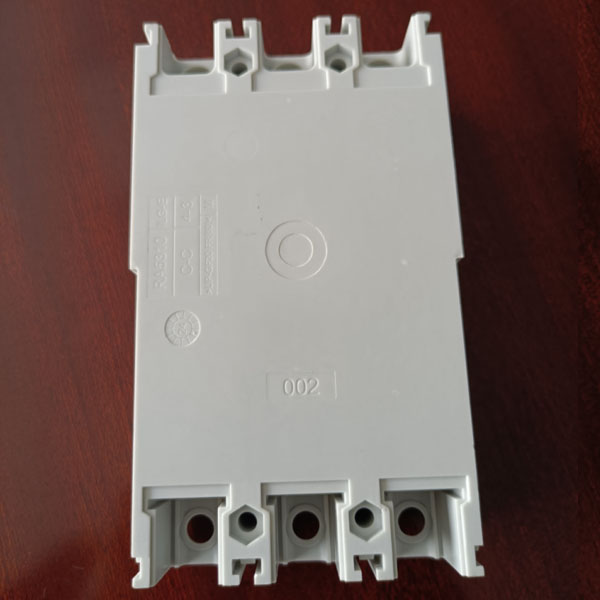

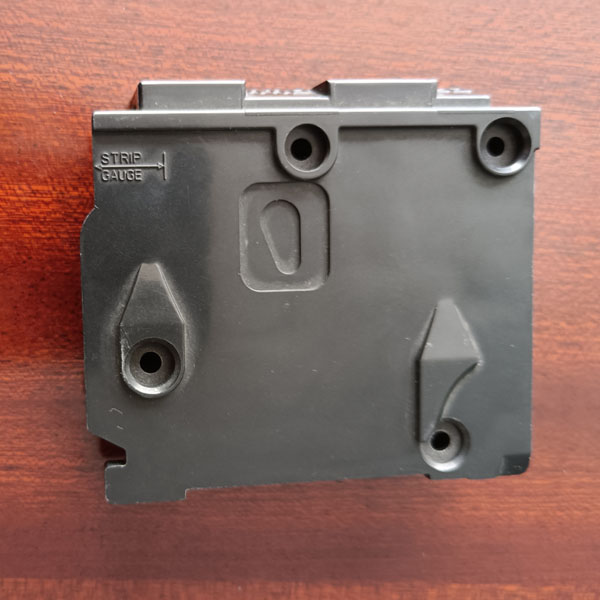

Bmc Injection Molding Products:
BMC injection molding is faster, more efficient, and more cost-effective than compression molding, enabling the production of more complex product structures.
BMC Injection Molding Manufacturer
Tooling
With 20 years of experience in BMC injection mold design, Yongchao optimize parting lines, ejector pin positions, heating systems, mold core thickness, slider structures, and core-pulling mechanisms.
To separate runners from products, we use in-mold cutting technology to reduce manual runner processing.
To minimize runner waste, save material costs, and reduce environmental pollution, we use valve gating design, resulting in lower product costs, shorter injection times, and better product strength.
Molding:
With over 20 years of injection molding experience, we excel in debugging different molds and product structures.
- Molds utilize a cold runner system.
- Vacuum technology is applied during molding.
- Injection molding
- Injection-compression molding increases product strength by 15% compared to standard injection molding.
- Transfer molding preserves glass fibers in the barrel, achieving strength close to that of compression molding.
Injection Machine:
Traditional screw-type injection machines can damage glass fibers. Therefore, we collaborated with machine suppliers to develop a new type of machine—a transfer machine without a screw—to achieve optimal product strength.
The machine barrel is equipped with a preheating system (50-60°C), improving material preheating for better molding, product appearance, and strength.
Why Choose BMC Injection Molding?
BMC injection molding has been recognized and licensed by international manufacturers in aerospace, automotive, truck, high-speed rail, medical, and other industries.
We provide customers with solutions for composite material applications, along with feasibility analysis and technical support for new product development.
BMC is available in various colors to meet different consumer market demands. It can also be produced using in-mold coating technology for integrated manufacturing based on customer requirements.
