ABS Injection Molding: Versatile Solutions for Durable Plastic Products

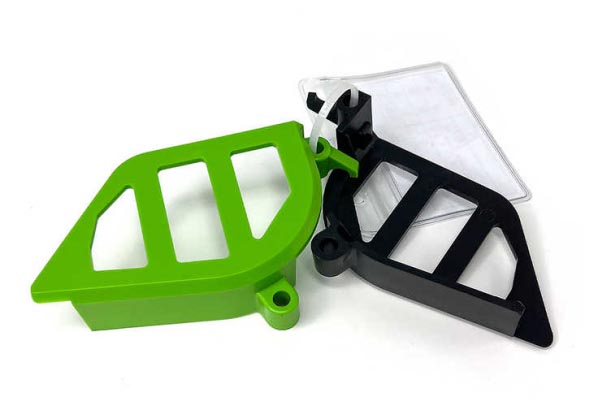

ABS injection molding is a common method for producing ABS plastic products. ABS, which stands for acrylonitrile butadiene styrene, is a durable yet light weight thermoplastic polymer known for its versatility and ease of processing. The molding process involves injecting molten ABS into a mold cavity and allowing it to cool and solidify before removing the finished part. This technique is efficient and cost-effective, making it an ideal choice for manufacturing a wide range of products. It is widely used in various industries, including household appliances, tools, and medical devices. Some familiar applications include Lego bricks, computer keyboard keys, power tool housings, and electrical outlet covers. In the automotive industry, ABS is utilized for components such as dashboards, seat belt parts, door trims, and bumpers. Below is an example of a part created through ABS injection molding.
ABS is easy to mold, recyclable, and offers good resistance to chemicals and heat, with a relatively low melting point. It is also impermeable to dirt. However, it doesn't perform well under prolonged UV light exposure or extended outdoor use. To enhance its durability against the elements, ABS can be painted or electroplated with a metal coating.
The Brief Summary of Advantage and Disadvantage of ABS
| Advantages of ABS | Disadvantages of ABS |
| High tensile strength | Poor resistance to UV light |
| Durability in various conditions | Reduced fatigue resistance |
| Versatility in applications | Higher initial costs for complex designs |

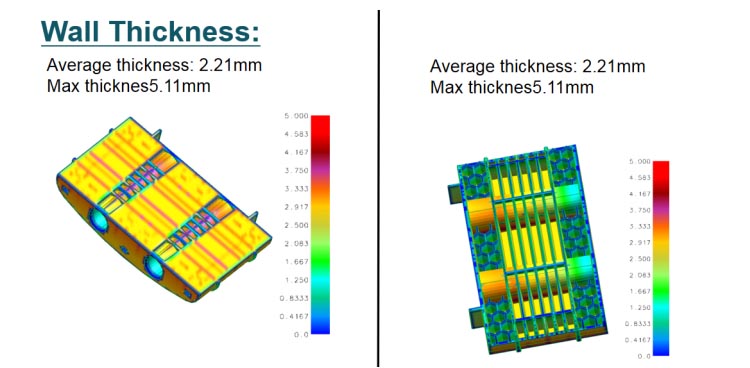

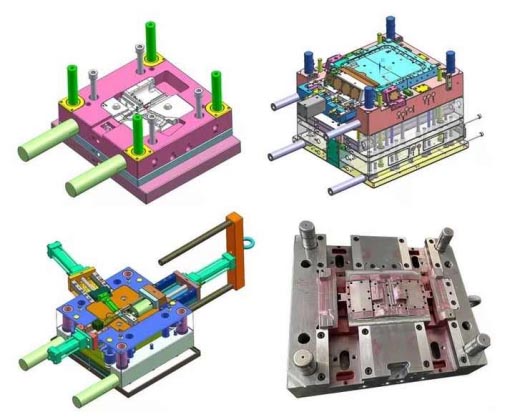

ABS Injection Molding Techniques
The specific techniques used in ABS injection molding can vary depending on the type of part being produced. Here are some examples:
Thin Wall: Given the relatively high viscosity of ABS, higher injection pressures are required for thin-walled parts. Additionally, molds must be designed to withstand the increased pressure to ensure proper filling and part quality.
Large and Hollow: Producing large, thin, or hollow parts can be challenging. However, water- or gas-assisted injection molding can be employed to address these issues. This technique forces the molten plastic against the mold walls, ensuring even thickness and a smooth surface finish.
Thick Wall: Standard injection molding techniques may result in sink marks on thick-walled parts. To mitigate this, compression injection molding can be used. This method involves injecting a precise amount of molten plastic into the mold cavity and then applying additional pressure to eliminate sink marks and reduce internal stresses. Alternatively, designing molds with thinner walls or higher thermal capacity can also help manage sink marks.
ABS plastic is truly a standout material—it’s durable, flexible, and cost-effective. Even its Achilles’ heel, UV light, can be effectively managed with the right additives, expanding its potential applications even further.
As manufacturing techniques continue to advance, the popularity of ABS is set to soar. It’s already a top choice for producing a wide range of plastic products. For businesses aiming to deliver high-quality items, ABS injection molding is the ultimate solution. It’s a fast and cost-efficient method for mass-producing parts, keeping your production line running smoothly and efficiently. In this context, Yongchao mold offers a variety of plastic materials, including PVC, ABS, and more. Reach out to us for your injection molding projects!
To truly excel in ABS molding, partner with a professional injection mold maker. They’ll guide you through the essentials of ABS, ensuring you achieve top-notch parts without breaking the bank. So, hop on the ABS train and see your production take off!
